Triton TPT125 317mm Thicknesser 1100W | Woodworking Machine

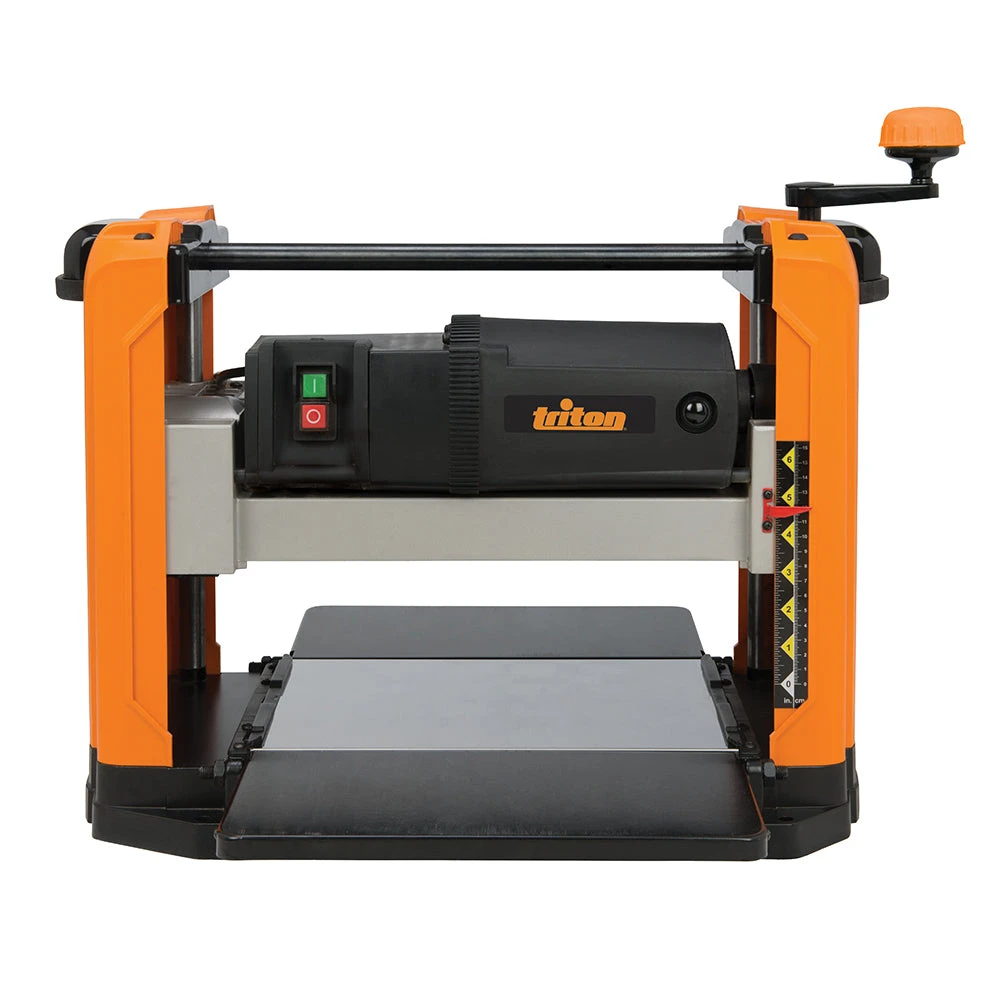

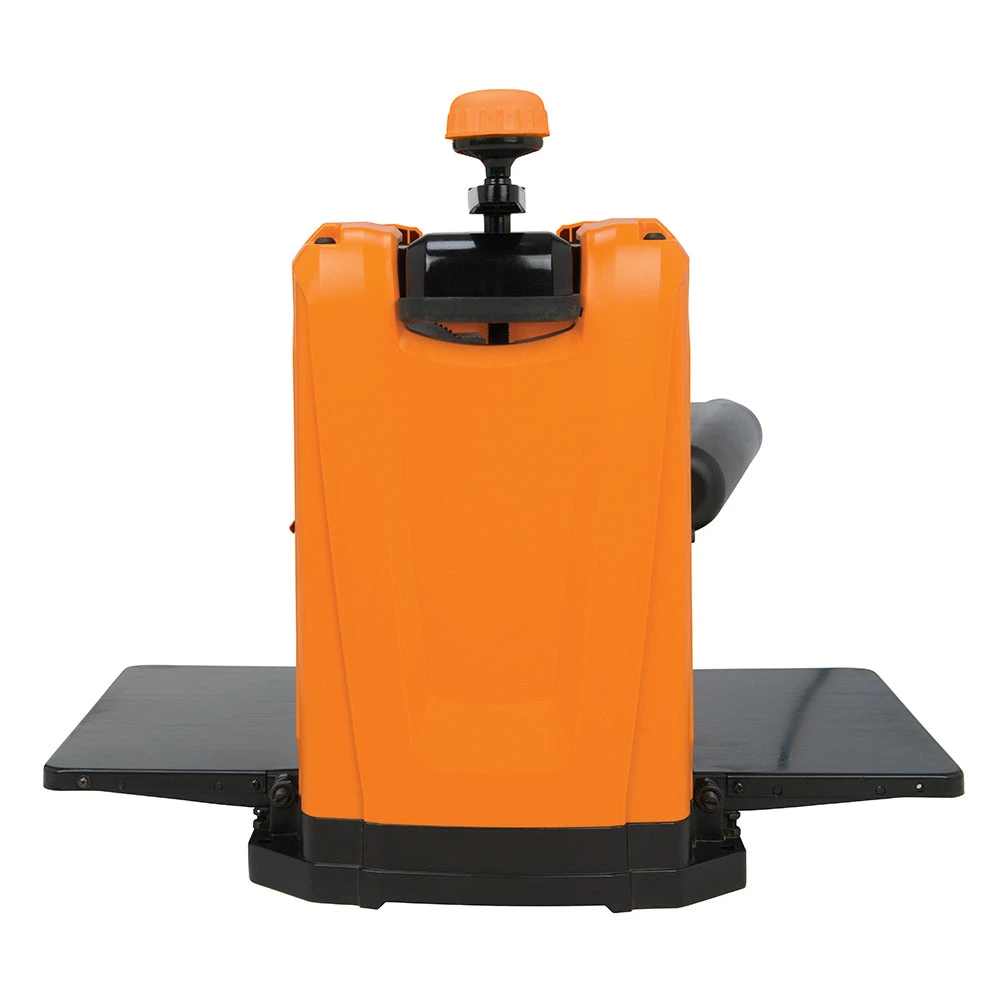

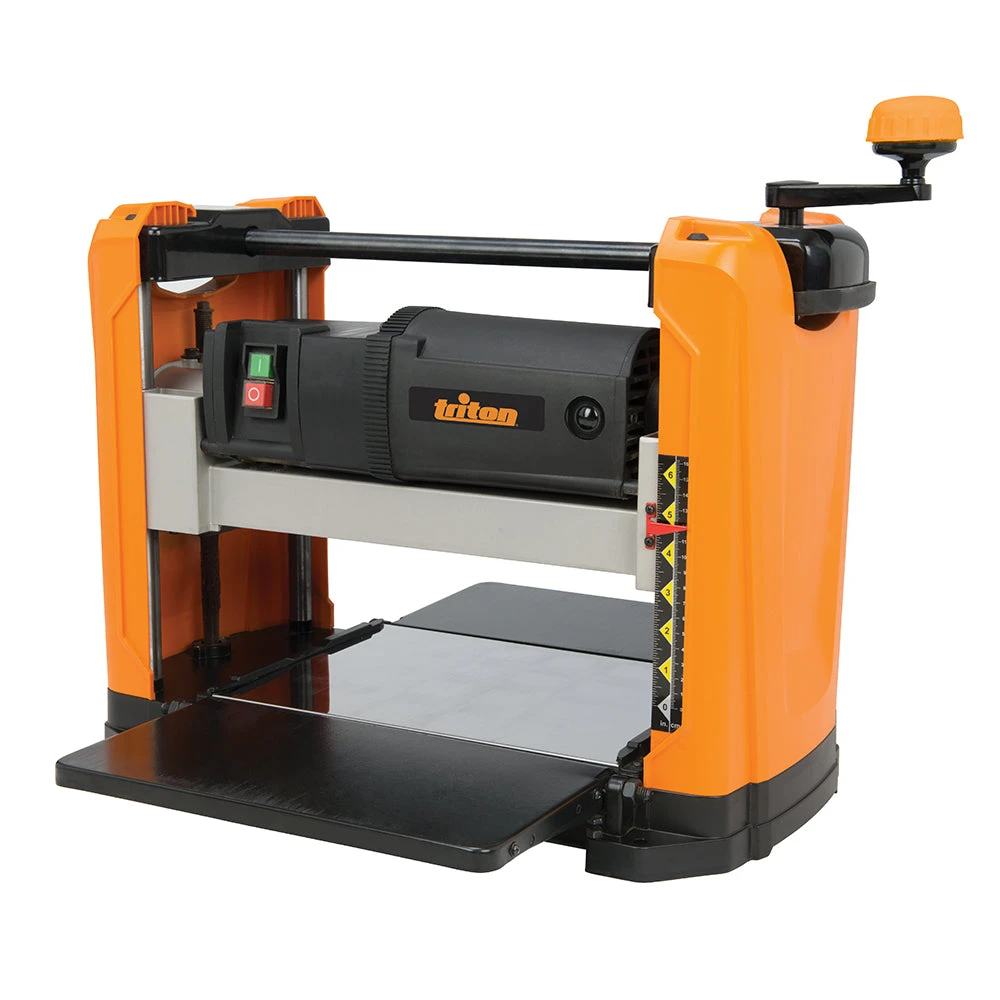

Triton 317mm Thicknesser woodworking machine

The triton TPT125 is one of the favourites thicknesser machines for joiners and woodworkers in the world, it is a heavy-duty machine.

• High-performance thicknesser with 317mm / 12-1/2″ cutting width. 17,500 cuts per minute.
• Easy, accurate setting of depth of cut in 1.6mm / 1/16″ increments.
• Cutter height: 3.2 – 152mm. 4-post column design for smooth, accurate vertical movement.
• Large infeed and outfeed tables for added material support.
• Circuit breaker for electrical safety.
• Dust chute for efficient dust extraction.

Box content:

1 x Thicknesser 12-1/2″
1 x Crank Handle
1 x Dust Chute
1 x Hex Key
1 x Instruction Manual

Features

• 317mm (12.5″) cutting width, 17,500 cuts per minute
• Max depth of cut in single pass: 2.4mm (3/32″)
• Easy, accurate setting of depth of cut in 1.6mm increments
• Large infeed & outfeed tables for additional material support
• Includes circuit breaker & dust extraction chute

Specifications

• Blade Type HSS blades
• Cuts Per Minute CPM 17,500cpm
• Micro Adjustment 1/16″ Increments
• No Load Speed 8,750rpm
• Planing Depth 1/8″
• Planing Width 15″
• Power 1100W
• Product Height 18-1/2″
• Product Length 23-1/2″
• Product Weight 63.9lbs
• Product Width 15″
• Sound Power LW 103.9dB
• Sound Pressure LP 90.9dB
• Table Size 12 1/2 x 12 39/64″

Product Video



Product manual

Product manual of Triton TPT125 317mm Thicknesser 1100W

Product sheet of Triton TPT125 317mm Thicknesser 1100W

Warranty

3 year manufacturer warranty* Customer have to register the product in manufacturer website
