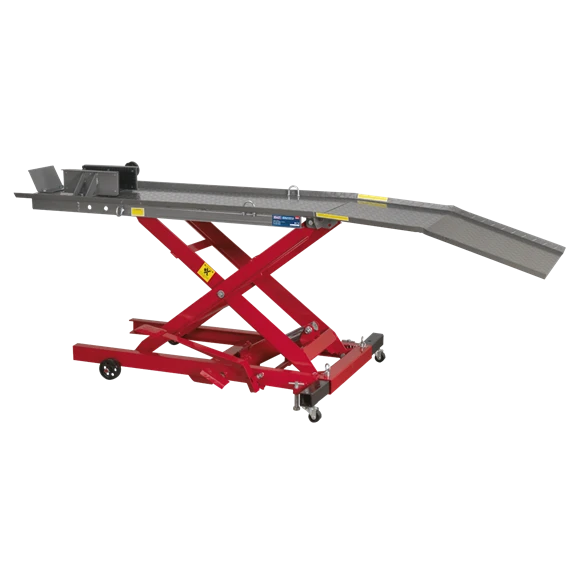

Sealey MC365 365kg Motorcycle Hydraulic Operation Lift Table – Table Size 2215x 480mm

Sealey MC365 365kg Motorcycle Hydraulic Operation Lift Table

All steel construction with heavy-duty foot-operated hydraulic pump and ram assembly. Safety table lock device to prevent accidental lowering.

Suitable only for smaller to medium capacity motorcycles with a centre-stand

Sealey quality Motorlift table

Operation:

• Position the lift in a suitable area, checking that the surface on which the lift will stand is solid and flat (preferably concrete).
• Check that the lift is fully lowered and that the vice jaws are open.
• Wheel the bike up the leading plate (31) and onto the platform so that the front of the wheel is just beyond the vice. Support bike on
• the centre stand.- Note: There is a choice of mounting holes for the vice to cater for various sizes of bike.
• Clamp front wheel in vice to prevent any movement of the bike.
• Ensure the bike is securely strapped to the platform.
• Raise the lift by pumping the lift foot pedal (7).
• When the lift is fully raised pass the locking bar (42) through the holes in the underside of the main platform (32) so that the lift
• cannot be inadvertently lowered.
• When work is complete, check under the lift to ensure that there are no obstructions and that it is safe to lower the unit.
• Remove the locking bar and then SLOWLY press the release valve pedal (10) to GENTLY lower the lift

Features

• All steel construction with foot-operated, integral hydraulic pump and ram assembly.
• Fitted with safety lock device to fix platform at three working heights of 500, 640 and 760mm to prevent accidental lowering.
• Suitable only for smaller to medium capacity motorcycles with a centre-stand.
• Support platform fitted with full width loading ramp.
• Base assembly fitted with transport wheels and lock-downs to prevent lift from moving during use.

Specifications

• Capacity: 365kg
• Minimum/Maximum Height: 220/760mm
• Platform Width/Length: 480/2215mm
• Maximum Load Length: 1350mm

Product video

Product manual

Product manual of Sealey MC365 365kg Motorcycle Hydraulic Operation Lift Table

Part list of Sealey MC365 365kg Motorcycle Hydraulic Operation Lift Table
