Einhell TC-SM 2531/2 U Sliding Mitre Saw 230V / 1900W

The Einhell (pull-cut/cross-cut) mitre saw TC-SM 2531/2 U is a high-quality tool for ambitious DIY enthusiasts.

It enables the processing of wood, coated panels and plastics. The cross-cut saw turntable made of high-quality die-cast aluminum has a precise angle adjustment that can be locked in different positions with one touch. With its continuously tilting saw head to the left, the saw allows the attachment of mitres and chamfers at any desired angle up to 45°.

The double-supported pulling function allows the cutting of particularly wide workpieces.

A robust clamping device is provided for the secure fixing of the workpiece. Thanks to cutting depth adjustment, even demanding work can be carried out effortlessly. The sturdy saw blade with a diameter of 254 mm saws powerfully and cleanly. It can be easily changed by means of a spindle lock.

The dust collection sack ensures cleanliness at the workplace. Thanks to the underframe, a relaxed posture is ensured. A transport lock is provided for easy, safe transport.

Einhell Sliding Mitre Saw Features

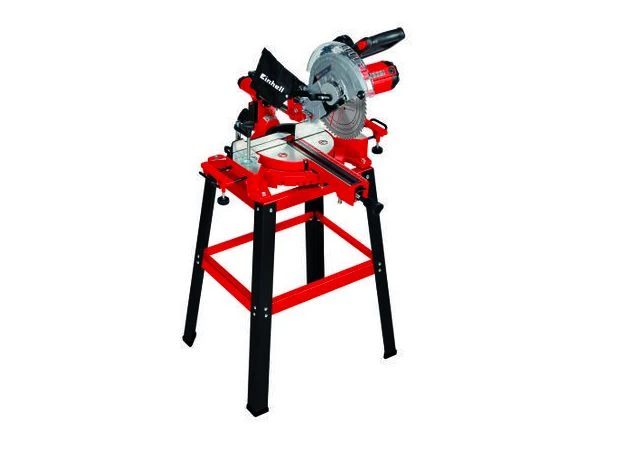

• Underframe for stable standing and pleasant working height (84 cm)
• Integrated pull function for wide workpieces up to 310 mm
• The integrated laser enables fast, precise cuts
• Rotary table with precise angle adjustment for oblique cuts
• Tilting saw head to the left for mitre cuts
• All settings are clearly visible from the working position
• Supports left and right for machining long workpieces

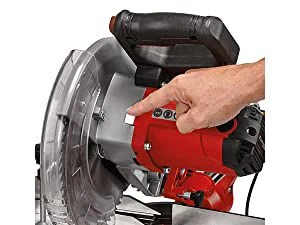

• Spindle lock for easy blade change

Specifications

Cutting depth 45° x 45°	40 mm
Cutting depth 90° x 90°	70 mm
Cutting width 45° x 45°	210 mm
Cutting width 90° x 90°	230 mm
Idle speed max.	4800 min^-1
Number of saw blade 1 teeth	48 pcs
Number of saw blade 2 teeth	48 pcs
Power	1900 W
Product weight	17.76 Kg
Saw blade 1 diameter	254 mm
Saw blade 1 type	HW/TCT
Saw blade 2 type	HW/TCT
Saw blade holder diameter	30 mm
Suction connection diameter	36 mm

Product manual

Product manual of Einhell TC-SM 2531/2 U Sliding Mitre Saw

Warranty

24 months manufacturer warranty.
