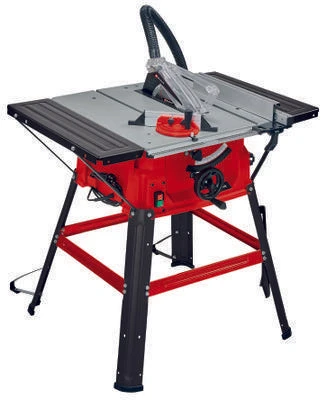

Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Einhell Table Saw TC-TS 2025/2 U Max 2000 W

The Einhell bench-type circular saw TC-TS 2025/2 U saw is a powerful device with which enables ambitious DIY enthusiasts to work with solid wood, fiberboard and many other similar materials.

It is supplied with a carbide-tipped precision saw blade, the height and angle of which can be adjusted by one hand easilly using the 2in1 saw blade adjustment.

The improved parallel guide makes it easy to realize perfect longitudinal cuts, while the cross stop and the tiltable saw blade are perfect for mitre cuts. The table extensions enlarge the surface additionally.

The dust extraction at the housing and at the saw blade cover help for cleaning the air.

Einhell table saw Features

• Table width extension left and right for wide workpieces
• Improved, stable parallel stop for exact cuts

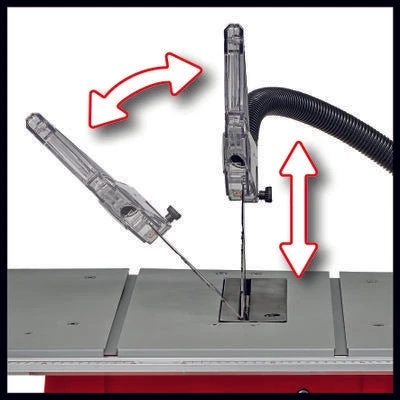

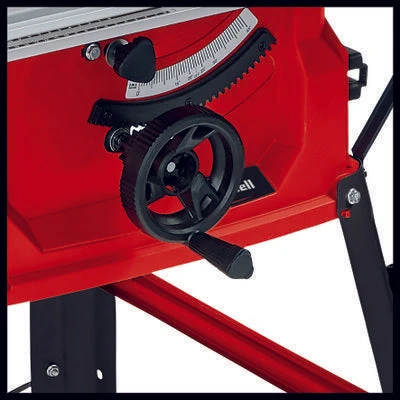

• 2 in 1 saw blade adjustment (height and angle with one hand)
• Cross stop with angle scale (+/- 60°) for simple mitre cuts

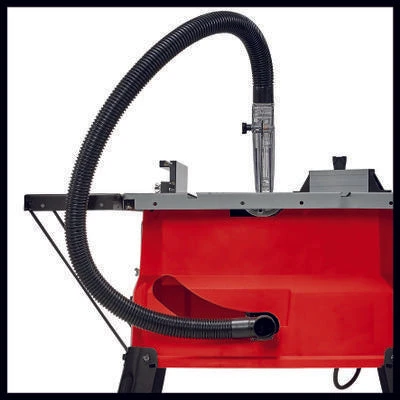

• Chip extractor connection at the housing and the saw blade cover
• Includes base frame for pleasant working height at 850 mm
• Holder at the housing to wrap the power cord

Einhell table saw Specifications

Mains supply	220-240 V | 50 Hz
Power	1800 W
Max. power (S6 | S6%)	2000 W | 25 %
Idle speed	5000 min^-1
Saw blade	250 mm x 30 mm
Number of saw teeth	24 Pieces
Swiveling range of saw blade	45 °
Max. cutting height at 45°	65 mm
Max. cutting height at 90°	85 mm
Height adjustment continuous	0-85 mm
Diameter of suction adapter	36 mm
Working height	850 mm
Size of working table	563 mm x 583 mm
Table broadening left	583 mm x 165 mm
Table broadening right	583 mm x 165 mm

Einhell table saw product manual & documents

Product manual of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Product sheet of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Product part list of Einhell Table Saw TC-TS 2025/2 U Max 2000 W

Warranty

24 months manufacturer warranty.
