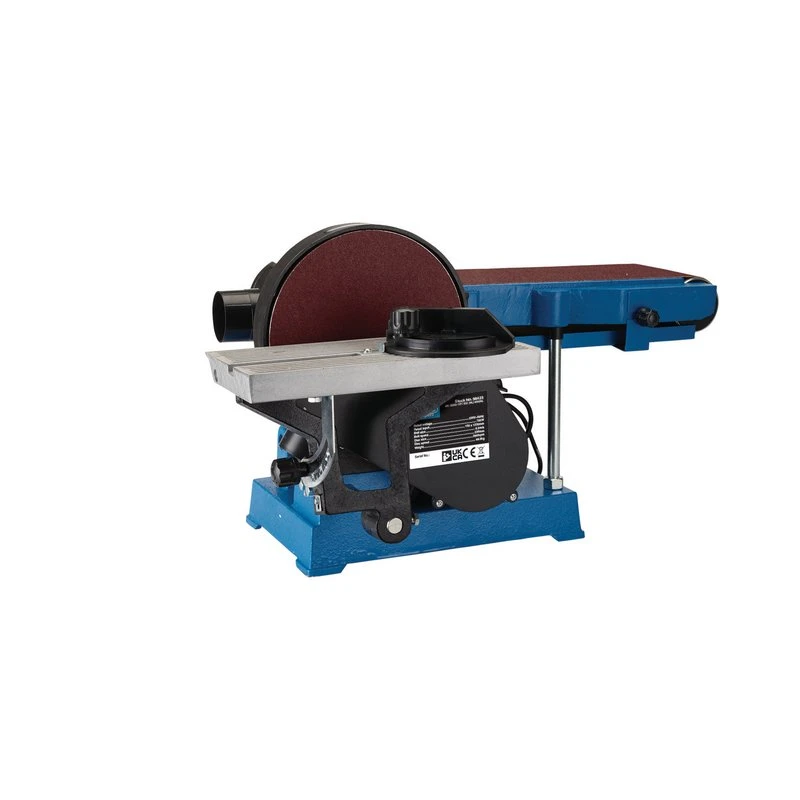

Draper 98423 Heavy Duty Belt And Disc Sander With Tool Stand 750W – 230V

Heavy duty 750W Belt and Disc Sander with Tool Stand

This robust belt and disc sander is powered by a 750W motor. The 200mm sanding belt can be positioned horizontally or vertically. The 200mm diameter disc is provided with its own worktable and mitre gauge.

The disc worktable can pivot from 0-45 degrees for accurate angle sanding. The discs are easily changed through the ‘hoop and loop’ mechanism. The machine has a no volt switch for safety.

To keep the workspace clean and safe, the sander has a dust filter bag and clamp. It also has a dust extraction outlet for connection to a vacuum.

The machine is designed and manufactured for sanding wood and similar materials and should not be used to abrade or grind metal. Supplied with sanding belt and disc.

Product features

Horizontal or vertical belt standing
Adjustable angle table with mitre gauge
Two dust extraction outlets
Supplied with a four-legged tool stand
Supplied with sanding belt and disc

Product Specifications

• Voltage 230V
• Power 750W
• No load speed 2950rpm
• Belt speed 9.2m/s
• Belt size 100 x 914mm
• Disc diameter 200mm
• Disc table siz 150 x 264mm
• Tilt 0-450
• Dimension 540 x 370 x 325mm
• Weight 21.5kg

Product manual

Product manual of Draper 98423 Belt and Disc Sander with Tool Stand 750W

Product Part list of Draper 98423 Belt and Disc Sander with Tool Stand 750W

Product Warranty

2 Years manufacturer warranty
