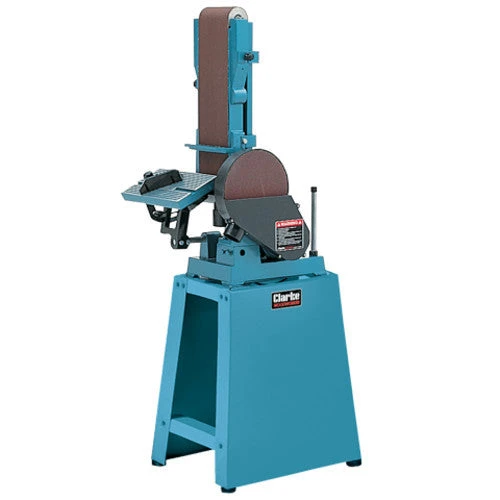

Clarke CS6-9D 1100W 6×9″ Belt & Disc Sander

Strong, sturdy and reliable the CS69D is a is floor-standing sander / finisher which comes comes complete with a stand, ideal for professionals and DIY enthusiasts users alike.

Suitable for use in the larger workshop, it allows all manner of sanding tasks to be accomplished easily and quickly. In addition, a wide variety of sanding discs and belts are available to make this multi-purpose sander a must for anybody serious about woodworking.

With a solid steel and aluminium construction, the CS69D provides good stablity with minimal vibration. And with the benefit of an adjustable belt angle, it is possible to sand at either a horizontal or vertical angle for added convenience.

The CS69D is fitted with a dust extraction outlet and can also be fitted with different Sanding and polishing accessories suitable for sanding wood, metal and plastics.

Sander features

• Sanding Type: Belt & Disc
• Operating Temperature: 0°C – 40°C
• Sanding Disc Diameter Ø: 228 mm (9″)
• Sanding Belt Dimensions: 152x1219mm
• Operating Voltage / Freq: 230V @ 50Hz
• Disc Speed: 1500rpm
• Belt Speed: 5.8m/s – 7m/s
• Output: 1.5HP (1.1kW)
• Dimensions: (LxWxH) 720x520x980mm
• 25.4mm (1”) x 762mm belt & 125mm (5”) dia. disc
• Sanding belt and disc tables tilt and lock from 0° – 45°
• +/- 45° adjustable fence on sanding disc table
• 38mm extraction port with 45mm adaptor
• Belt table size 184x98mm. Disc table diameter 148mm
• Disc speed 2850rpm
• Weight: 40kg

Replacement belts & discs

Buy 6” Replacement belts (150 x 1219mm) here

Buy Replacement 9” discs here

Product manual

Product manual of Clarke CS6-9D 1100W 6×9″ Belt & Disc Sander

Warranty

1 year manufacturer warranty.
